Stromberg WW

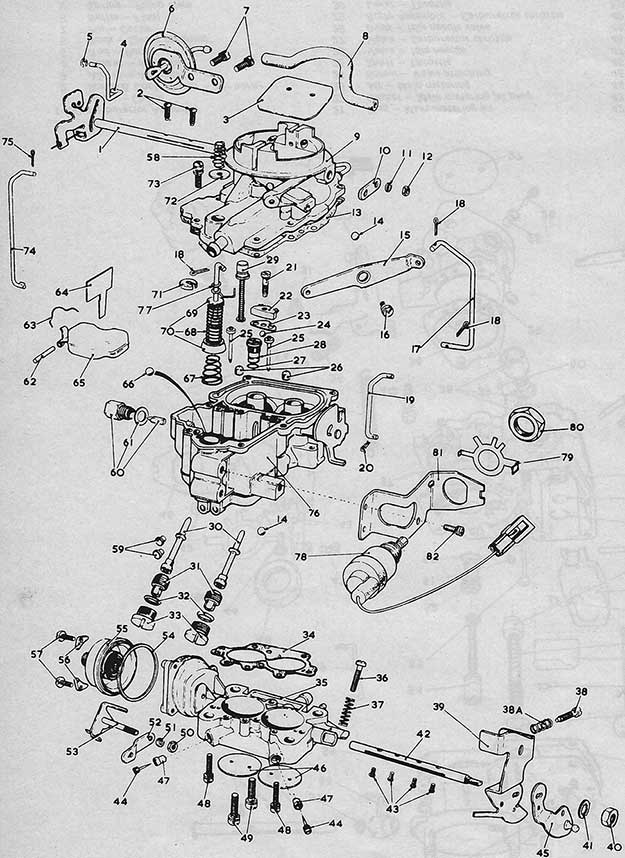

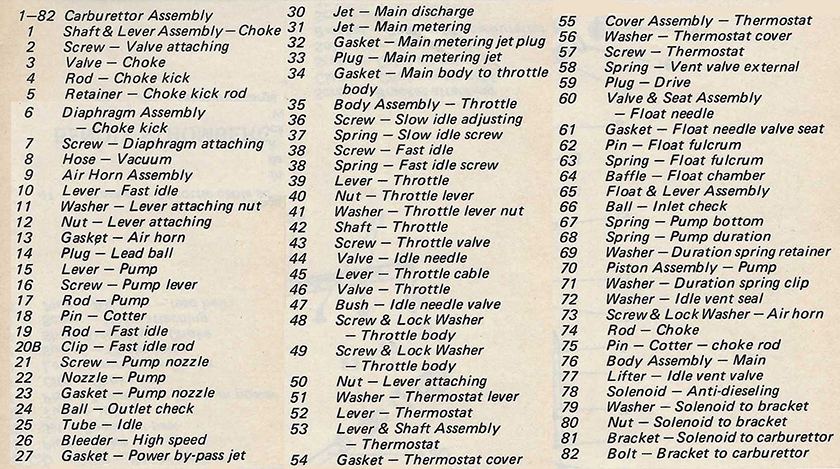

The good old Holden carb, also fitted to Leyland and Fords. Not to difficult to re-build. Schematic is of a late model WW which has the plastic inserts (47) for the mixture screws and is also fitted with an idle speed solenoid (78). Although technically it is an anti run-on device. At the bottom of the page, I made a small video explaining the adjustments.

I have a simpler way to do the float level. Just make sure the top of the float surface looks parallel to the body face.
